Management	Establish and maintain connections	Beacon, Probe, Authentication
Control	Channel access control	ACK, RTS, CTS
Data	Carry user data	Data, QoS Data, Null Data

Beacon	The AP periodically broadcasts SSID, supported capabilities, and time information.
Probe Request/Response	Scan and respond to available SSIDs.
Authentication	Start the authentication process (Open System or Shared Key).
Association Request/Response	Establish a connection between STA and AP after authentication.
Reassociation	STA requests reconnection when roaming through another AP.
Disassociation	Disconnect the logic from the AP.
Deauthentication	Disconnect all connections (logical and security).
Action	Used for advanced functions such as BSS Transition Management (BTM), Radio Measurement, Block ACK, Fast Transition (FT)…

Control Frames

ACK	Successful response to a received message.
RTS (Request to Send)	It is recommended to reserve the line in advance to avoid conflicts.
CTS (Clear to Send)	Response to RTS, allowing data to be sent.
Block ACK Request/Response	Batch QoS packet validation.
RPS-Poll	The STA tells the AP that it is awake and wants to receive data.

Data Frames

Data	Packet containing user payload (TCP/IP, etc.)
QoS Data	Data packet with priority information (WMM - voice/video).
Null Data	The packet has no payload, just to indicate the status (sleep/awake).
QoS Null	Like Null Data, but with QoS support.

Security related news (WPA/WPA2/WPA3)

EAPOL-Key Frames	4 ways to use WPA/WPA2 handshake (msg1–msg4)
SAE Commit/Confirm	WPA3-Personal replaces PSK, prevents offline dictionary attack
PMF (Protected Management Frames)	Used to encrypt messages such as Deauth/Disassoc

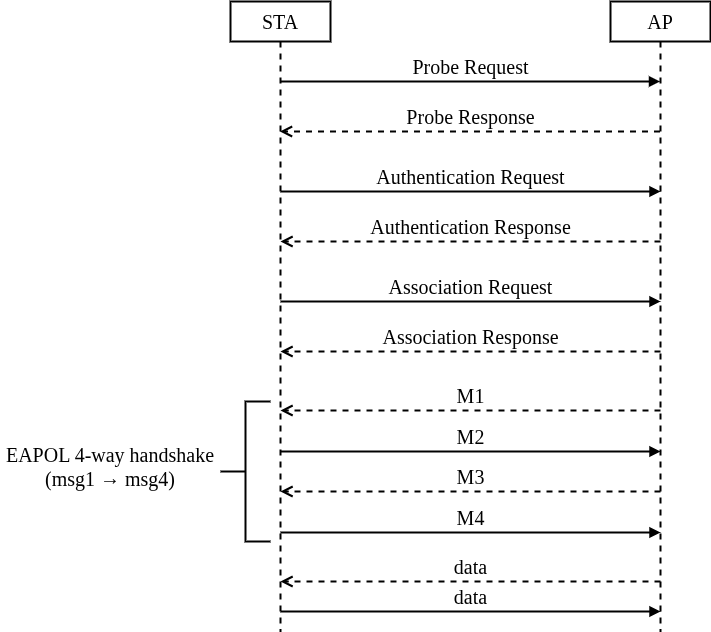

Wi-Fi connection

Common Errors in 4-Way Handshake

MIC Different	PMK mismatch (wrong PSK) or Packet modified or corrupted
Timeout MSG1	STA not responding → driver error, weak signal, STA does not support standard
Replay Counter mismatch	STA/AP using different Replay Counter values → software error or attack
Handshake Loop (retry MSG1)	STA returns Msg2 with wrong MIC multiple times → AP retry → loop

WPA2 vs WPA3

Characteristic	WPA2	WPA3
Source PMK	PSK (Pre-Shared Key) or 802.1X	SAE (Simultaneous Authentication of Equals)
Security capabilities	Weak with weak PSK, vulnerable to offline attacks	Cannot brute-force offline
Handshake	4-way EAPOL	SAE → 4-way (like WPA2, after authentication)

Wireshark Message

802.11 Messages with Wireshark

Dynamic Frequency Selection (DFS)

Dynamic Frequency Selection (DFS) is a channel allocation scheme specified for wireless LANs, commonly known as Wi-Fi. It is designed to prevent electromagnetic interference by avoiding co-channel operation with systems that predated Wi-Fi, such as military radar, satellite communication, and weather radar, and also to provide on aggregate a near-uniform loading of the spectrum (uniform spreading).[1] It was standardized in 2003 as part of IEEE 802.11h.

Radar detection mechanism

When starting operation, an access point automatically selects channels with low interference levels in a phase known as Channel Availability Check (CAC). During this phase, the access point is in a passive state scanning for radar signals. This commonly takes one to two minutes, but could take up to ten minutes. Thereafter, the access point performs In-Service Monitoring (ISM) to detect active radar signals; if radar is detected, and the access point is configured to automatically select a channel, it broadcasts a switch-channel event to its clients and follows by switching the channel. The actual mechanism, durations, radar pulse pattern, power levels, and frequency bands on which DFS is enforced vary by jurisdiction. DFS is mandated for the 5470–5725 MHz U-NII band in United States by the FCC. DFS is mandatory for the 5250–5350 and 5470–5725 MHz bands in India.

Weather radar interference

Prior to the introduction of Wi-Fi, one of the biggest applications of the 5 GHz band was Terminal Doppler Weather Radar. The decision to use 5 GHz spectrum for Wi-Fi was finalized in the World Radiocommunication Conference in 2003; however, the meteorological community was not involved in the process. Implementation and configuration problems caused significant disruption in weather radar operations in countries around the world. In Hungary, the weather radar system was declared non-operational for more than a month. Due to the severity of interference, South African weather services ended up abandoning C band operation, switching their radar network to S band.

Modulation and Coding Scheme (MCS)

A Modulation and Coding Scheme (MCS) is a method used in wireless communication to determine how data is transmitted. It combines modulation techniques and coding rates to balance data rate and reliability based on channel conditions. MCS is a crucial metric in Wi-Fi and cellular networks, impacting performance and efficiency.

MCS Table (HT/VHT/HE) - MCSINDEX.NET

802.11 Frame Types

Management Frames
